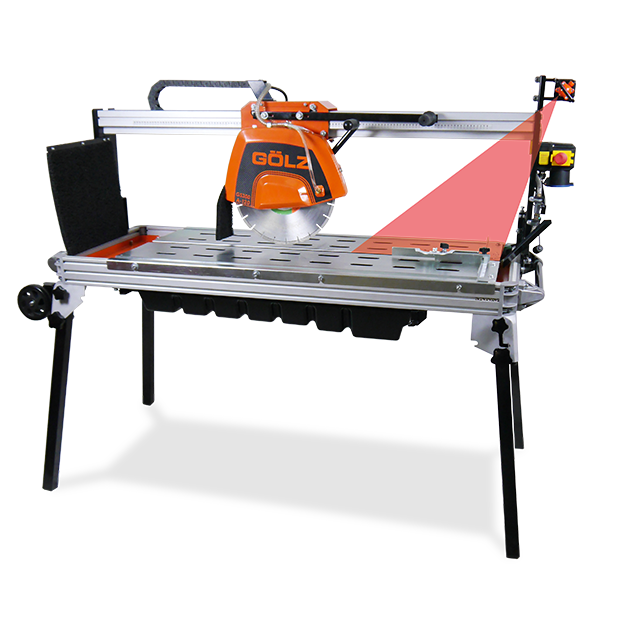

GS350A-120
Professional aluminum bridge saw. The solution for long granite and natural stones.
-
Blade-Ø350 mm
-
Max. Cutting Depth110 mm
-
Max. Cutting Length1.200 mm
-
Power2,2 kW, 230 V
ltem number: 0289 350 3100
-
FEATURES
![45° miter-cut built-in]()

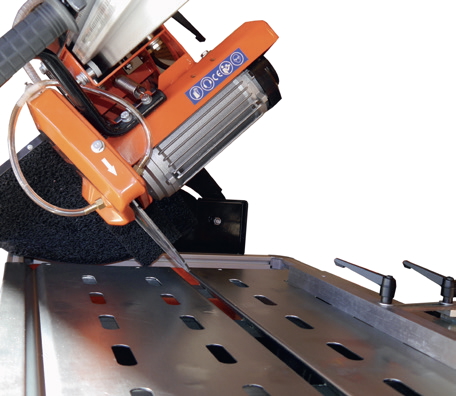

45° miter-cut built-in![Laser cutting device]()
Laser cutting device -
TECH DATA TABLE
Cutting length up to 1.200 mm (48") Blade-Ø 350 mm (14")
• Incl. Laser cutting device
• Cutting head adjustable up to 45°
• Plastic water tub, easy for cleaning, no rusting, long life time
• Cutting head with ball bearing wheels to remote smooth movements and accuracy
• Foldable legs
• Transport wheel, easy for moving and loading
• The front shield prevents operator against water spray
• Removable cutting table, easy for cleaning
• Embedded cable protection chain, protects cables against damage
• Electric water pump with quick coupling, easy for changing the pump
• Special water nozzle for optimized water cooling
• Adjustable cutting length
Specifications GS350A-120 GS350A-120 Motor Electric, 230 V, 50Hz, IP54
Electric,115V, 50-60Hz, 20A, IP54 Power 2,2 kW 2,2 kW Max. cutting depth 110 mm (4,5") 110 mm (4,5") Max. blade size 350 mm (17") 350 mm (17") Arbor hole 25,4 mm (1") 25,4 mm (1") Cutting length 1.000 mm (1.200 mm) / 40" (48") 1.000 mm (1.200 mm) / 40" (48") Shaft speed 2.800 min-1 2.800 min-1 45° miter-cut yes yes Water pump S2, 230V, 50Hz, 55W S2, 230V, 50Hz, 55W Blade flange size Ø 90 mm 90 mm Transport wheels yes yes Cutting table (LxW) 1.200x625 mm 1.200x625 mm Dimensions (LxWxH) 1.500x630x1.490 mm 1.500x630x1.490 mm Weight 97 kg (214 lbs) 97 kg (214 lbs) Order number 0289 350 3100 0289 350 3120 -

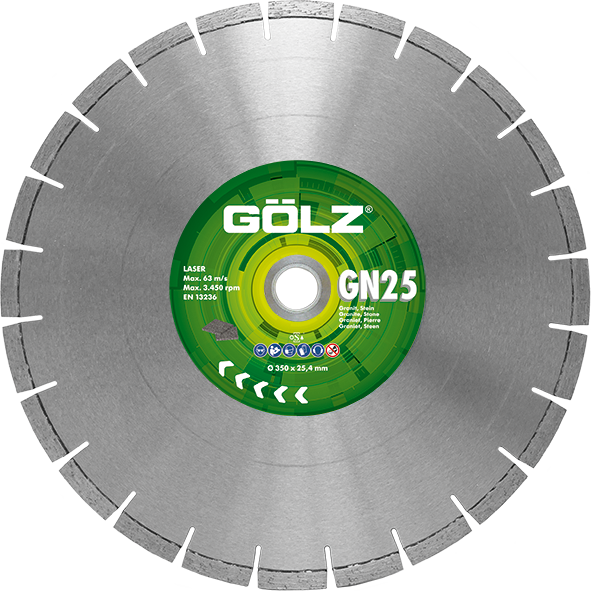

Diamond ToolsSuitable diamond tools – our recommendations
-
ACCESSORIESComplete your equipment
-
DOWNLOAD MANUAL
-

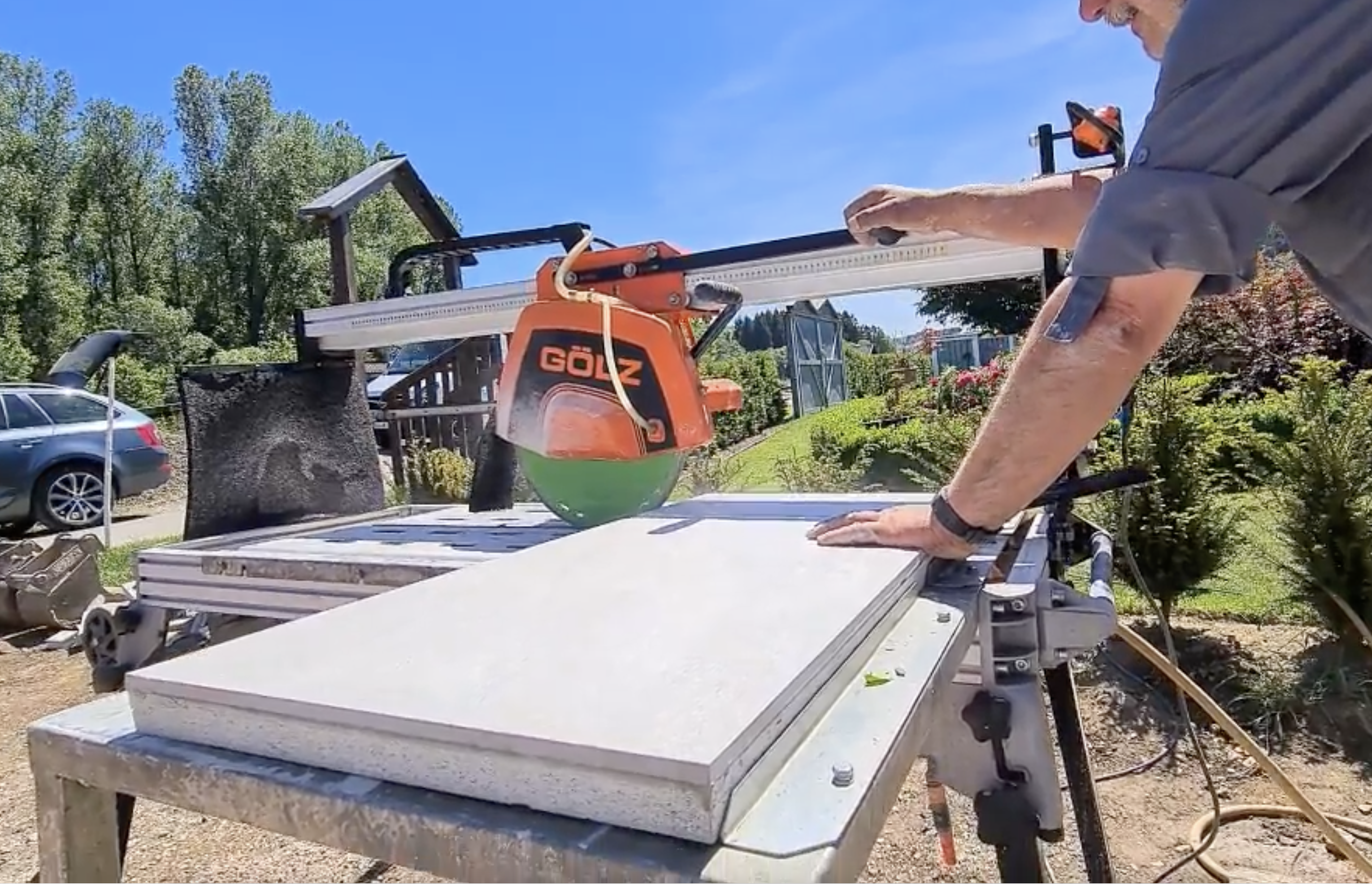

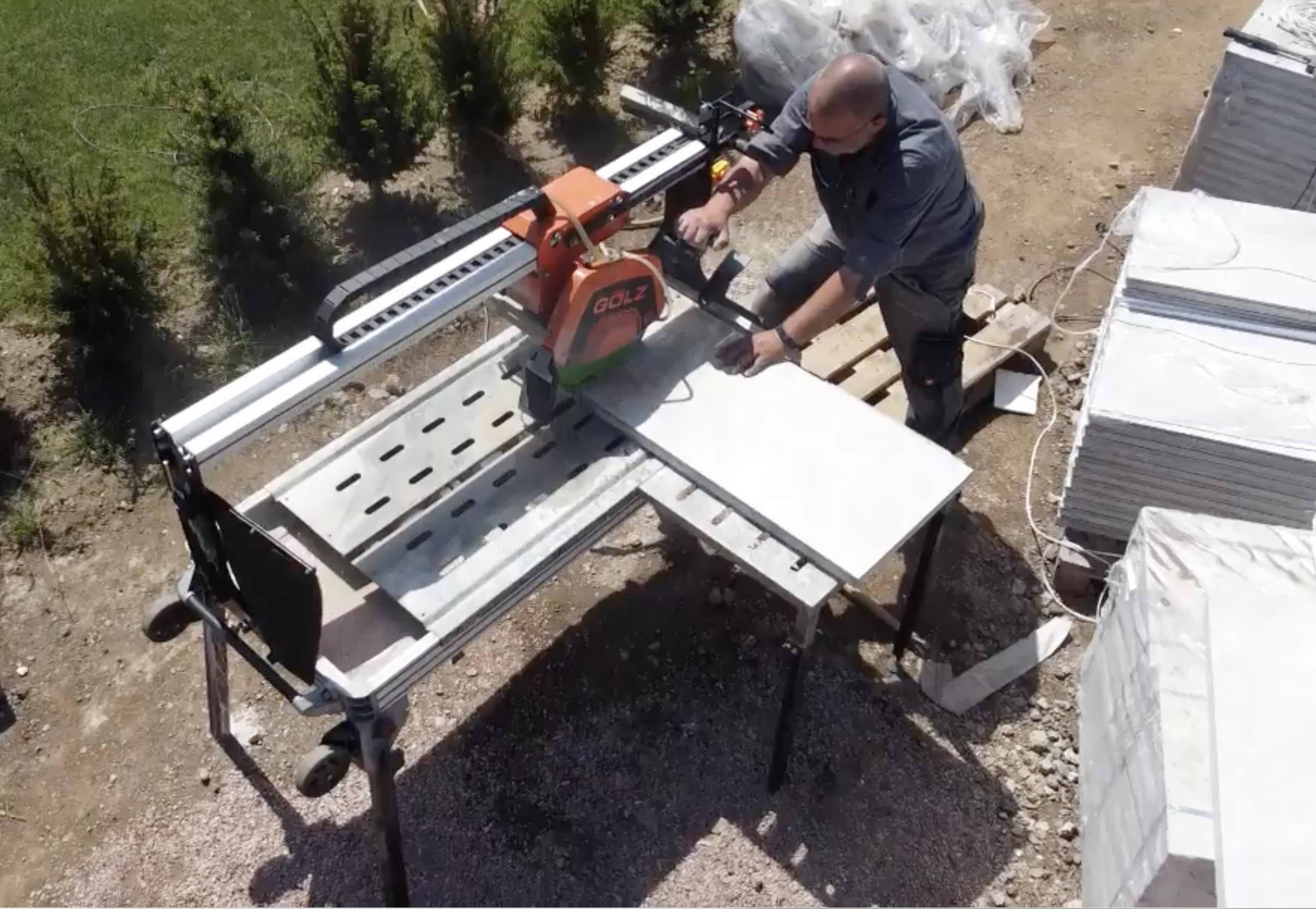

VideosSee our products in action
Innovative and Expansive for 80 Years
Founded in 1946 in Germany, GÖLZ specializes in developing and manufacturing diamond tools, as well as drilling and sawing equipment for the construction industry. With more than seventy years of experience, GÖLZ has become a market leader, offering cutting machines and innovative solutions for drilling and sawing in concrete and other building materials .
