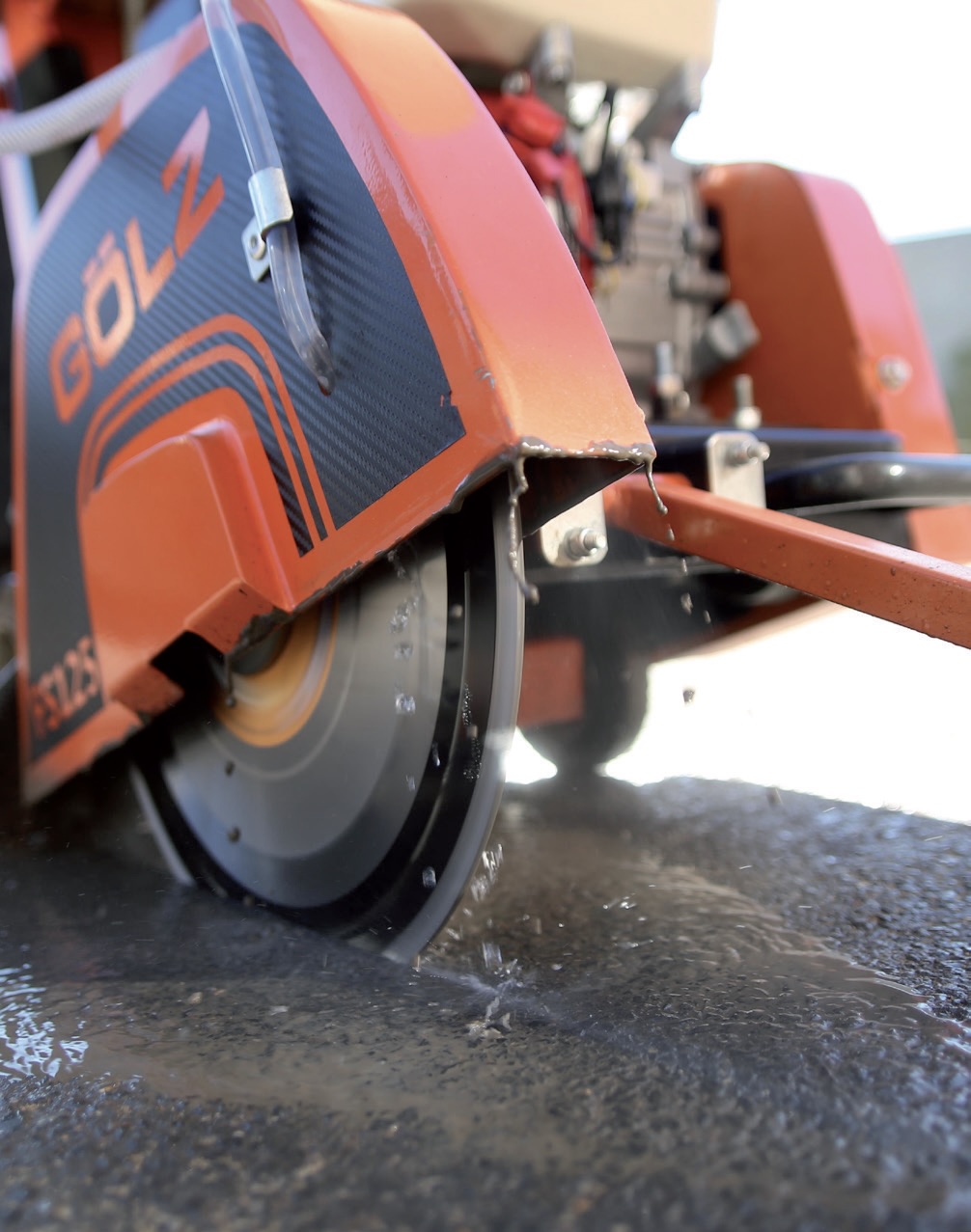

FS125
Robust and userfriendly for small road repair jobs or cutting small trenches for piping. The alternative solution to a cut off saw cart. Compact - lightweight - quiet - stable
-
Blade-Ø350 mm
-
Max. Cutting Depth120 mm
-
Power6,5 HP / 4,8 kW
-
Weight77 kg
ltem number: 0282 125 6000
-
FEATURES
![Lifting frame]()
Lifting frame![25 Liter water tank, easy to fill]()

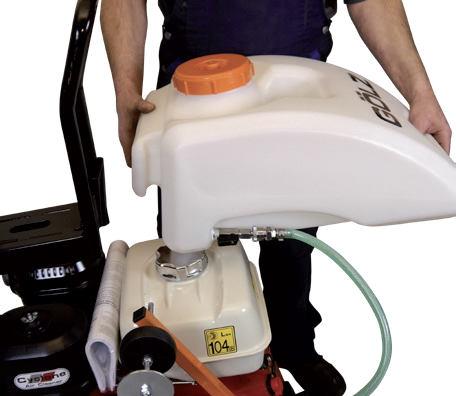

25 Liter water tank, easy to fill![Adjustable anti vibration handles for operators comfort]()

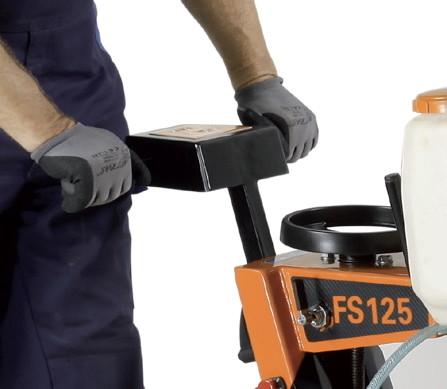

Adjustable anti vibration handles for operators comfort![Cutting depth adjustment by handwheel]()

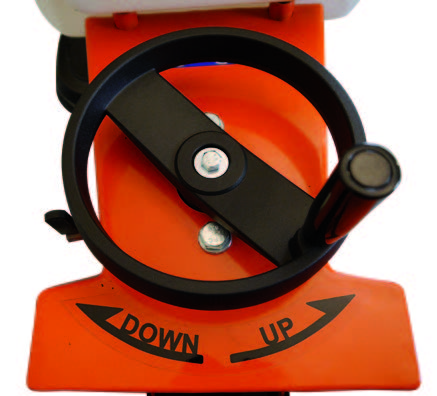

Cutting depth adjustment by handwheel![Cutting depth indicator]()

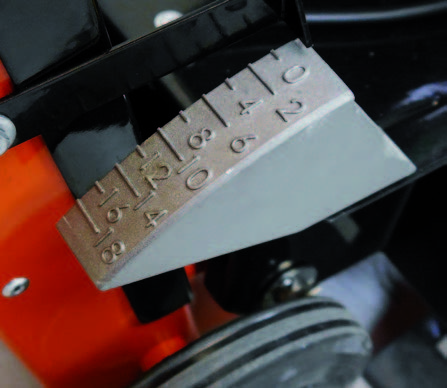

Cutting depth indicator -
TECH DATA TABLE
6,5 HP Honda gas engine
Blade-Ø 350 mm (14")
Cutting depth 120 mm (5")
• Adjustable anti vibration handles for operators comfort
• Cutting depth adjustment by handwheel
• Cutting depth indicator
• Front cutting guide
• Parking brake
• Lifting frame
• 25 Liter water tank, easy to fill
• Big rear wheels for good chassis clearance
• Durable Poly-V belt for an optimum of power transmission
Specifications FS125 Max. Cutting depth 120 mm (4,7") Blade diameter 350 mm (13,8") Shaft size 25,4 mm (1") Water tank 25 Liter (6,6 gal) Engine Honda GX200 Engine power (net power) 6,5 HP / 4,8 kW (5,5 HP / 4,1 kW) Shaft speed 2.730 min-1 Feed motion Push Cutting depth adjustment Handwheel Power transmission V-Belt Kit Hand Arm Vibrations 4,5 m/s2 Dimensions (L x W x H) 950 x 460 x 940 mm Weight 77 kg (170 lbs) -

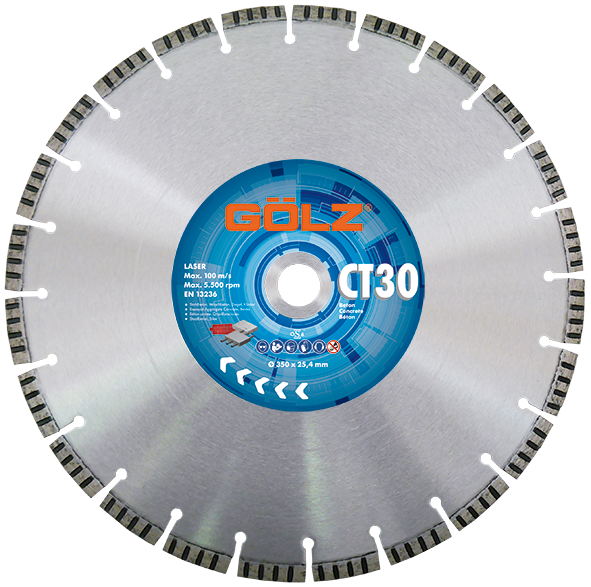

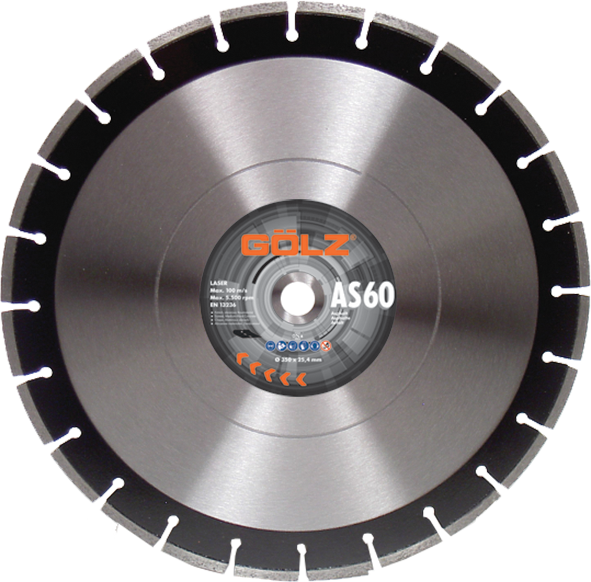

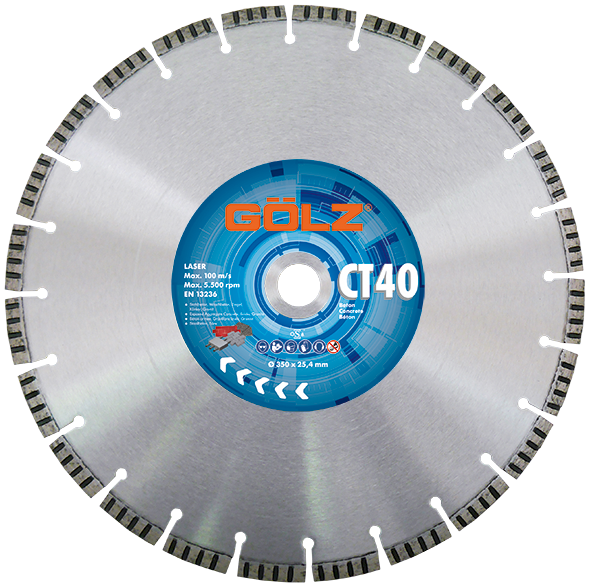

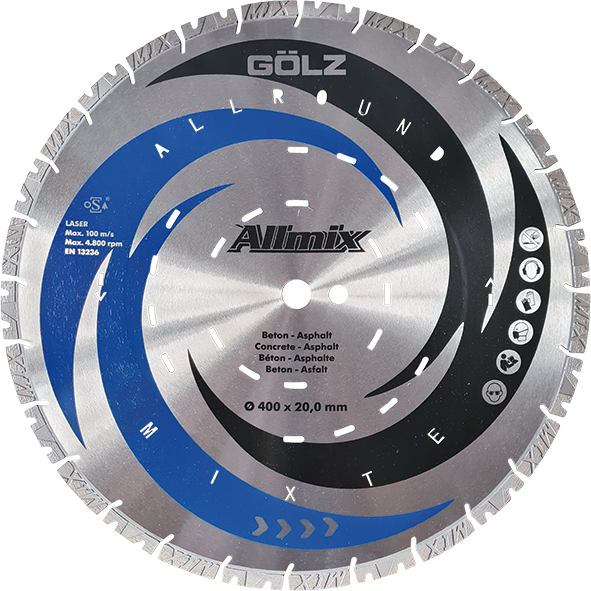

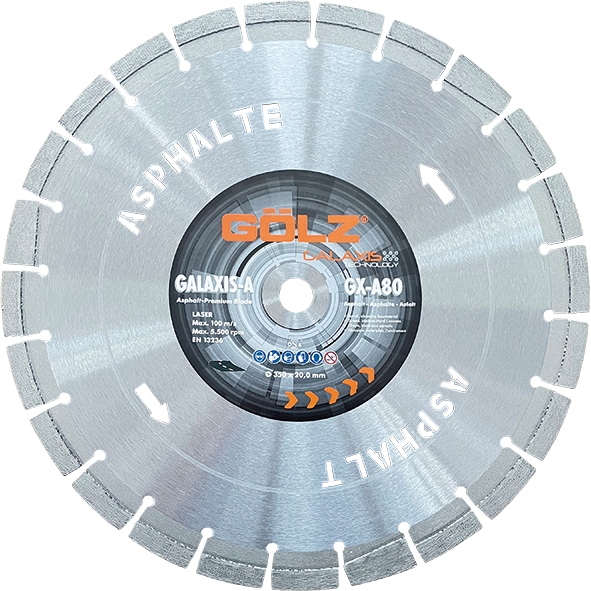

Diamond ToolsSuitable diamond tools – our recommendations
-
DOWNLOAD MANUAL
