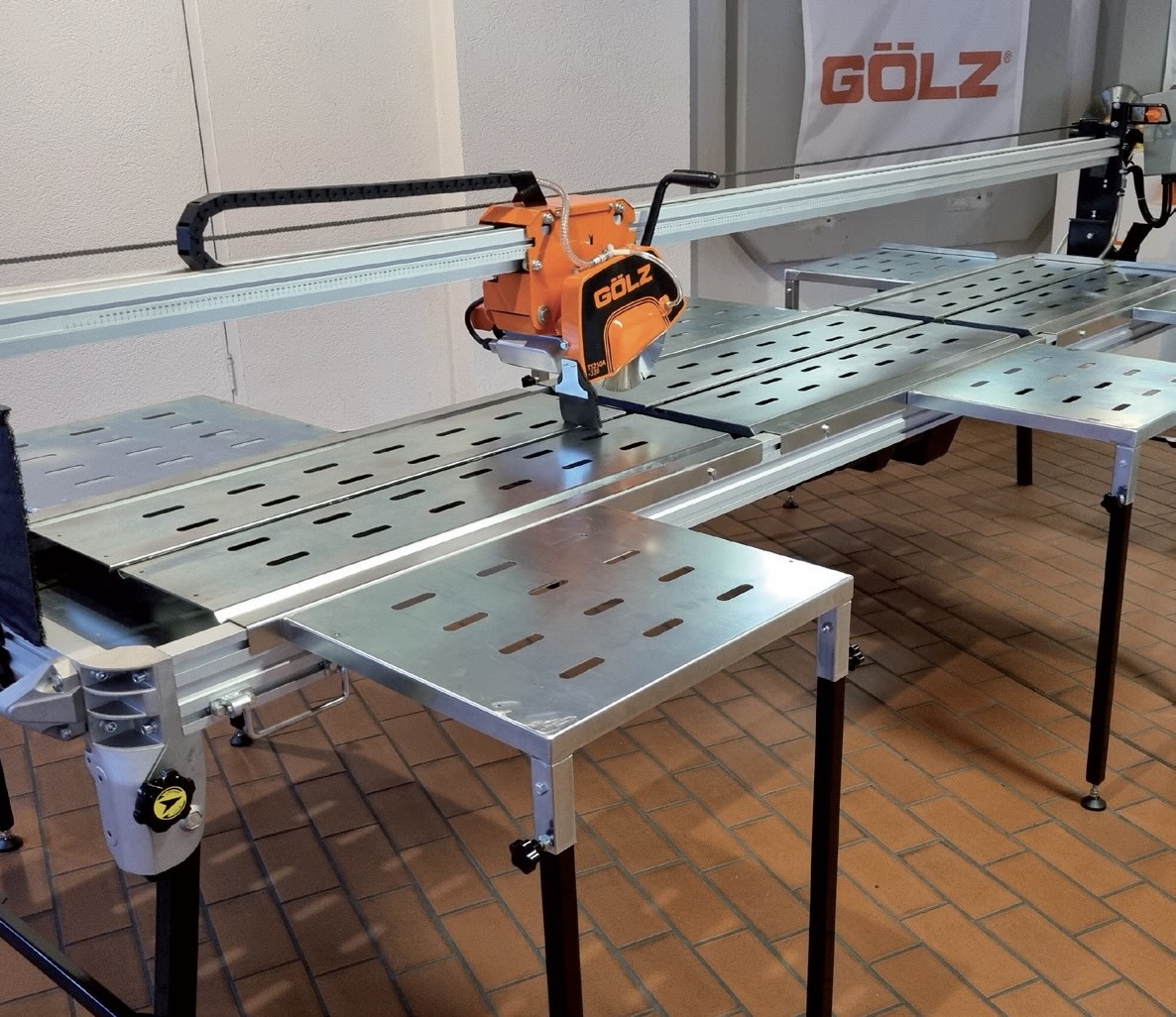

TS250A-330
Extra long aluminum tile saw
-
Blade-Ø250 mm
-
Max. Cutting Depth50 mm
-
Max. Cutting Length3.330 mm
-
Power2,2 kW, 230 V
ltem number: 0289 250 5000
-
FEATURES
![The TS250A-330 can be edited with up to four side tile supports per side.]()
The TS250A-330 can be edited with up to four side tile supports per side.![The 1m long side tile support ensures an exact separation cut.]()

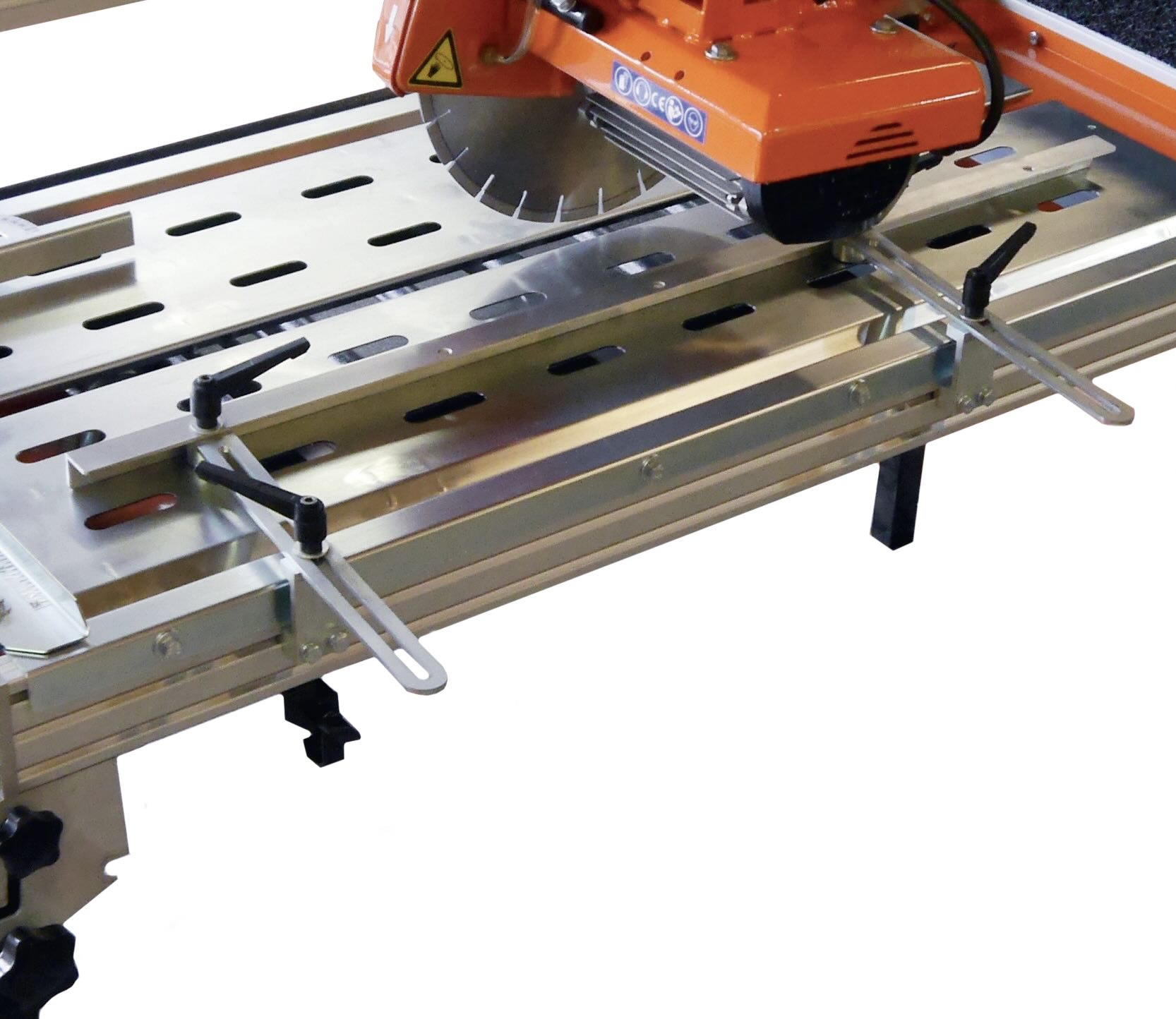

The 1m long side tile support ensures an exact separation cut.![The tiles can be fixed to the cutting table using the T-Lock System.]()

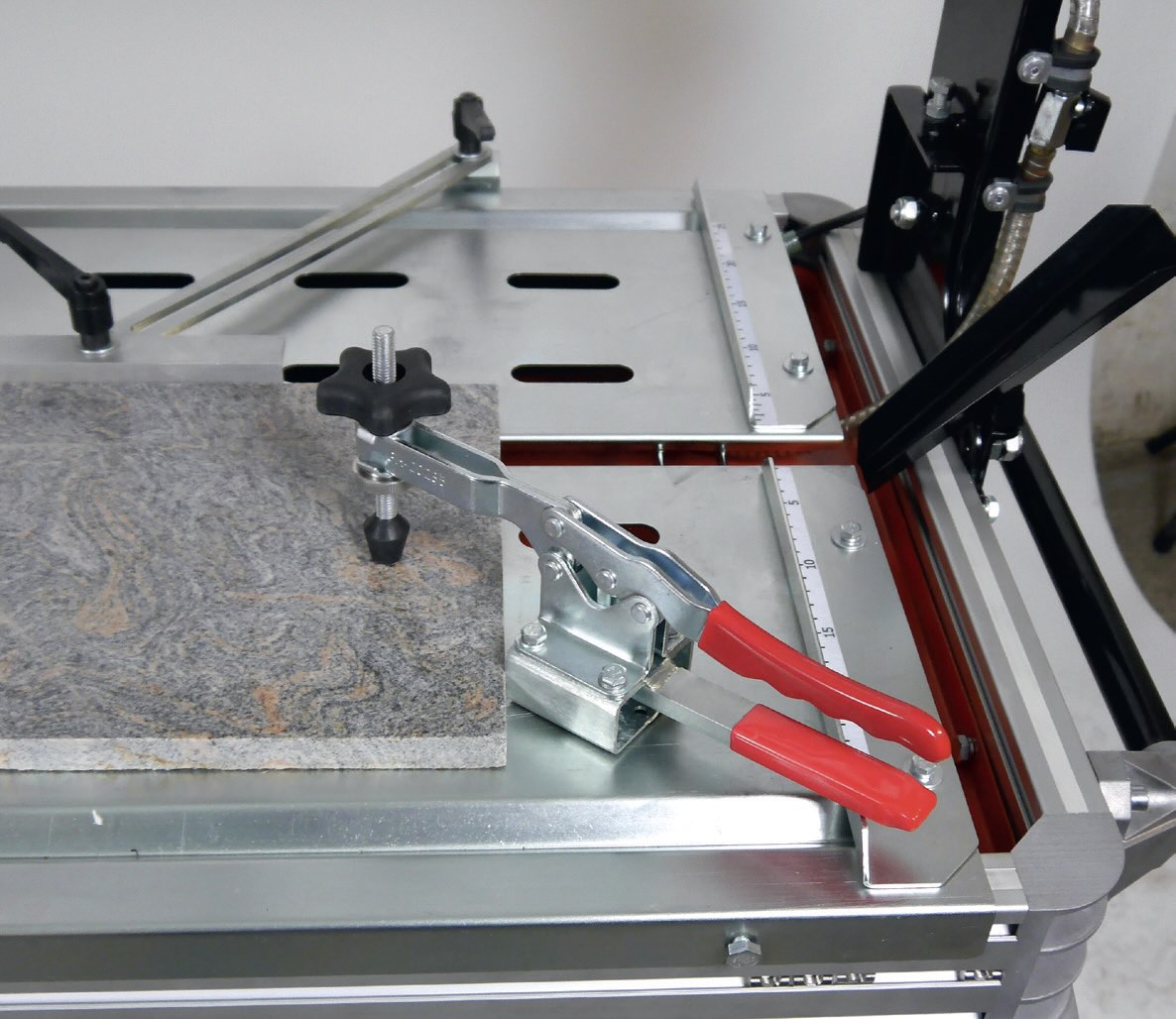

The tiles can be fixed to the cutting table using the T-Lock System. -
TECH DATA TABLE
Cutting length up to 3.300 mm
• Blade Ø 250 mm
• Especially for cutting large-format tiles and ceramic plates using the wet cutting process
• Miter cuts possible up to 45° by swiveling the cutting head (Jolly)
• Plastic water tray, easy to clean, no rust, long service life
• Foldable legs
• Electric water pump with quick-change coupling
• Removable support table, making it easy to clean
• Tool-free locking of the cutting head, safe transport
• Transport handles
• Ball-bearing and lowerable cutting head
• Laser cut display
• Can be edited with up to eight side arms (accessories)
Specifications TS250A-330 Motor Electric, 230 V, 50Hz,
Power 2,2 kW Max. cutting depth 50 mm (2") Max. blade size 250 mm (10") Arbor hole 25,4 mm (1") Cutting length 3.300 mm (131") Shaft speed 2.800 min-1 45° miter-cut Built-In Water pump S2, 230V, 50Hz, 55W Blade flange size Ø 110 mm Transport wheels yes Cutting table (LxW) 3.300x600 mm Dimensions (LxWxH) 3.900x740x1.350 mm Weight 280 kg Order number 0289 250 5000 -

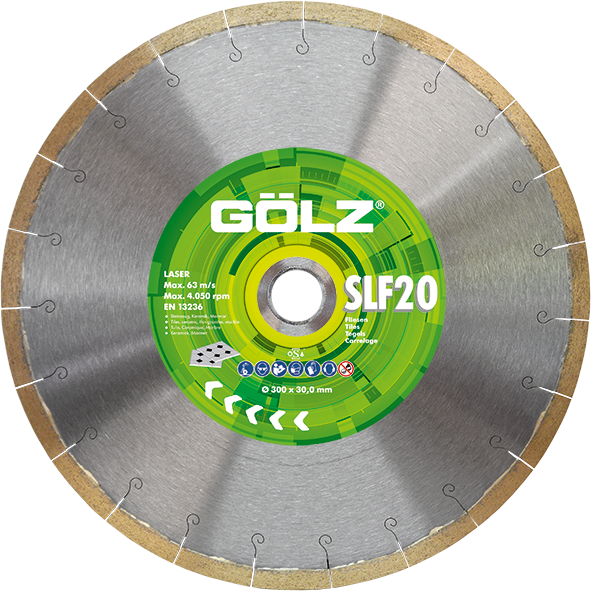

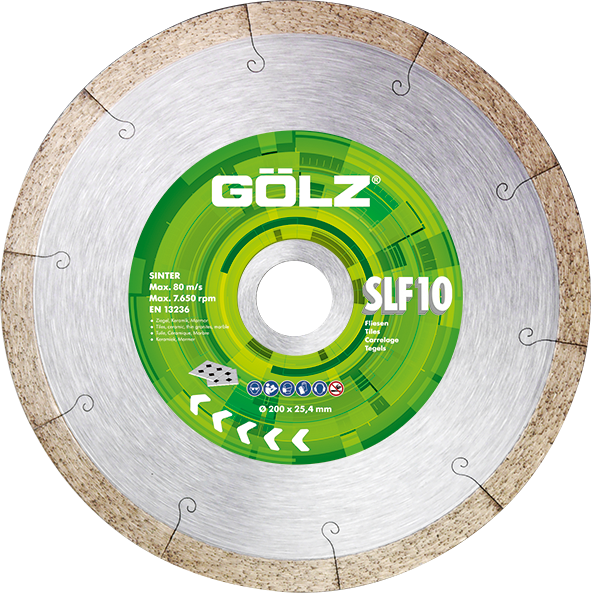

Diamond ToolsSuitable diamond tools – our recommendations
-

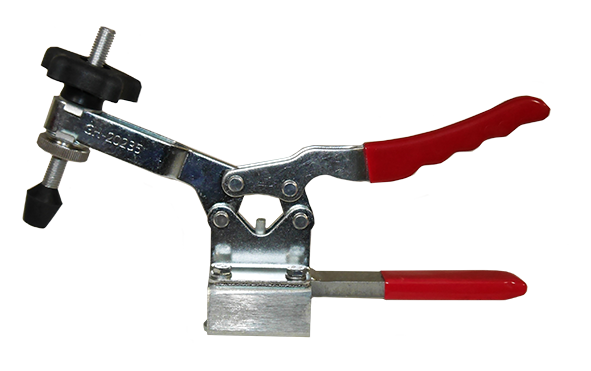

ACCESSORIESComplete your equipment
-
DOWNLOAD MANUAL
