TS250A
Professional tile cutting machine with aluminum frame
-
Blade-Ø250 mm
-
Max. Cutting Depth65 mm
-
Max. Cutting Length1.300 mm
-
Power1,3 kW, 230 V
ltem number: 0289 250 1100
-
FEATURES
![45° miter-cut built-in]()

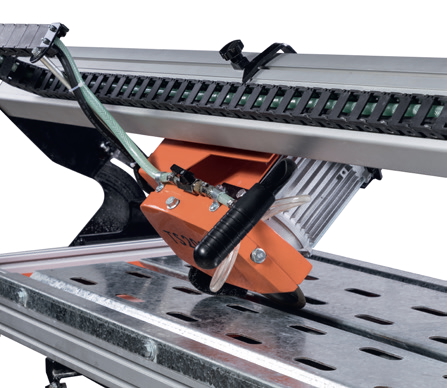

45° miter-cut built-in![Laser cutting device]()

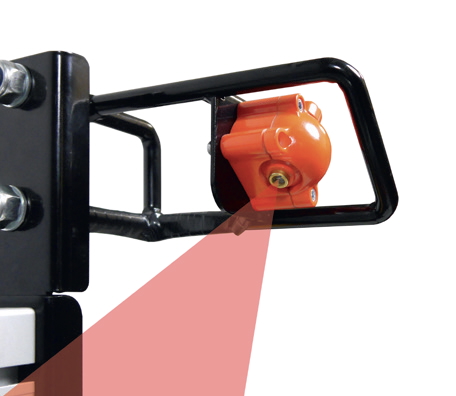

Laser cutting device![Removable water tub]()

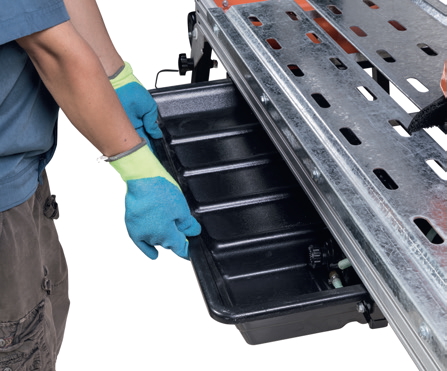

Removable water tub -
TECH DATA TABLE
BladeØ 250 mm (10") Cutting length 1300 mm (51")
• Cutting head adjustable up to 45° (Jolly cutting)
• Plastic water tub, easy for cleaning, no rusting, long life time
• Foldable legs
• Electric water pump with quick coupling, easy for changing the pump
• Removable cutting table, easy for cleaning
• Angle stop
• Tool-free cutting head interlocksystem
• Transport handle and wheels for easy moving and loading
• Ball bearing and retractable cutting head
• Incl. Laser cutting device
Specifications TS250A TS250A Motor Electric, 230 V, 50Hz, IP54
Electric, 115V, 50Hz, IP54 Power 1,3 kW 1,3 kW Max. cutting depth 65 mm (2,5") 65 mm (2,5") Max. blade size 250 mm (10") 250 mm (10") Arbor hole 25,4 mm (1") 25,4 mm (1") Cutting length 1200 mm (1300 mm) / 47" (51") 1200 mm (1300 mm) / 47" (51") Shaft speed 2.800 min-1 2.800 min-1 45° miter-cut Built-In Built-In Water pump S2, 230V, 50Hz, 55W S2, 230V, 50Hz, 55W Blade flange size Ø 90 mm 90 mm Transport wheels yes yes Cutting table (LxW) 1.300x490 mm 1.300x490 mm Dimensions (LxWxH) 1.640x540x1.299 mm 1.640x540x1.299 mm Weight 72 kg (158 lbs) 72 kg (158 lbs) Order number 0289 250 1100 0289 250 1200 -
Diamond ToolsSuitable diamond tools – our recommendations
-
ACCESSORIESComplete your equipment
-
DOWNLOAD MANUAL
-
VideosSee our products in action
