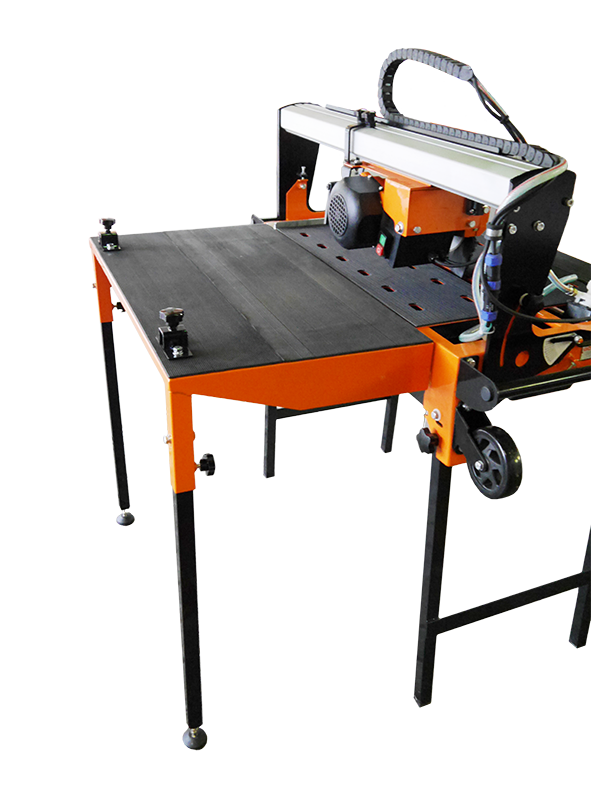

TS250
Professional tile cutting machine
-
Blade-Ø250 mm
-
Max. Cutting Depth65 mm
-
Max. Cutting Length1.140 mm
-
Power1,3 kW, 230 V
ltem number: 0289 250 1000
-
FEATURES
![45° miter-cut built-in]()

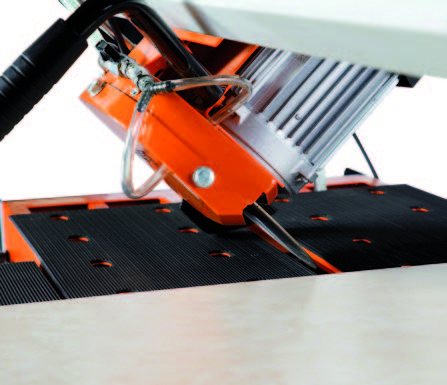

45° miter-cut built-in![Removable cutting table]()

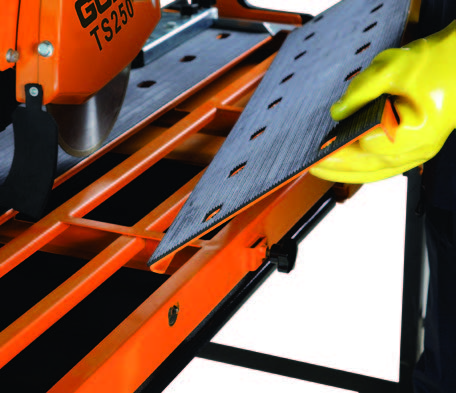

Removable cutting table![Removable water tub]()

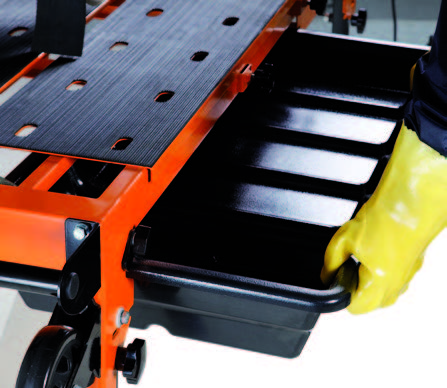

Removable water tub -
TECH DATA TABLE
BladeØ 250 mm (10") Cutting length 1.140 mm (45")
• Cutting head adjustable up to 45° (Jolly cutting)
• Plastic water tub, easy for cleaning, no rusting, long life time
• Foldable legs
• Adjustable cutting length
• Removable cutting table, easy for cleaning
• Electric water pump with quick coupling, easy for changing the pump
• Pluggable blade guard for easy changing of diamond blade
• Angle guide
• Side table small
• Diamond blade Ø 250 mm for ceramics and tiles SLF10
Specifications TS250 230V TS250 110V Motor Electric, 230 V, 50Hz, IP54
Electric, 115V, 50Hz, IP54 Power 1,3 kW 1,3 kW Max. cutting depth 65 mm (2,5") 65 mm (2,5") Max. blade size 250 mm (10") 250 mm (10") Arbor hole 25,4 mm (1") 25,4 mm (1") Cutting length 1040 mm (1140 mm) / 41" (45") 1040 mm (1140 mm) / 41" (45") Shaft speed 2.800 min-1 2.800 min-1 45° miter-cut Built-In Built-In Water pump S2, 230V, 50Hz, 55W S2, 115V, 50Hz, 55W Blade flange size Ø 110 mm 110 mm Transport wheels yes yes Cutting table (LxW) 1.140 x 480 mm 1.140 x 480 mm Dimensions (LxWxH) 1.390x500x1.299 mm 1.390x500x1.299 mm Weight 72 kg (158 lbs) 72 kg (158 lbs) Order number 0289 250 1000 0289 250 2000 -
Diamond ToolsSuitable diamond tools – our recommendations
-
ACCESSORIESComplete your equipment
-
DOWNLOAD MANUAL
