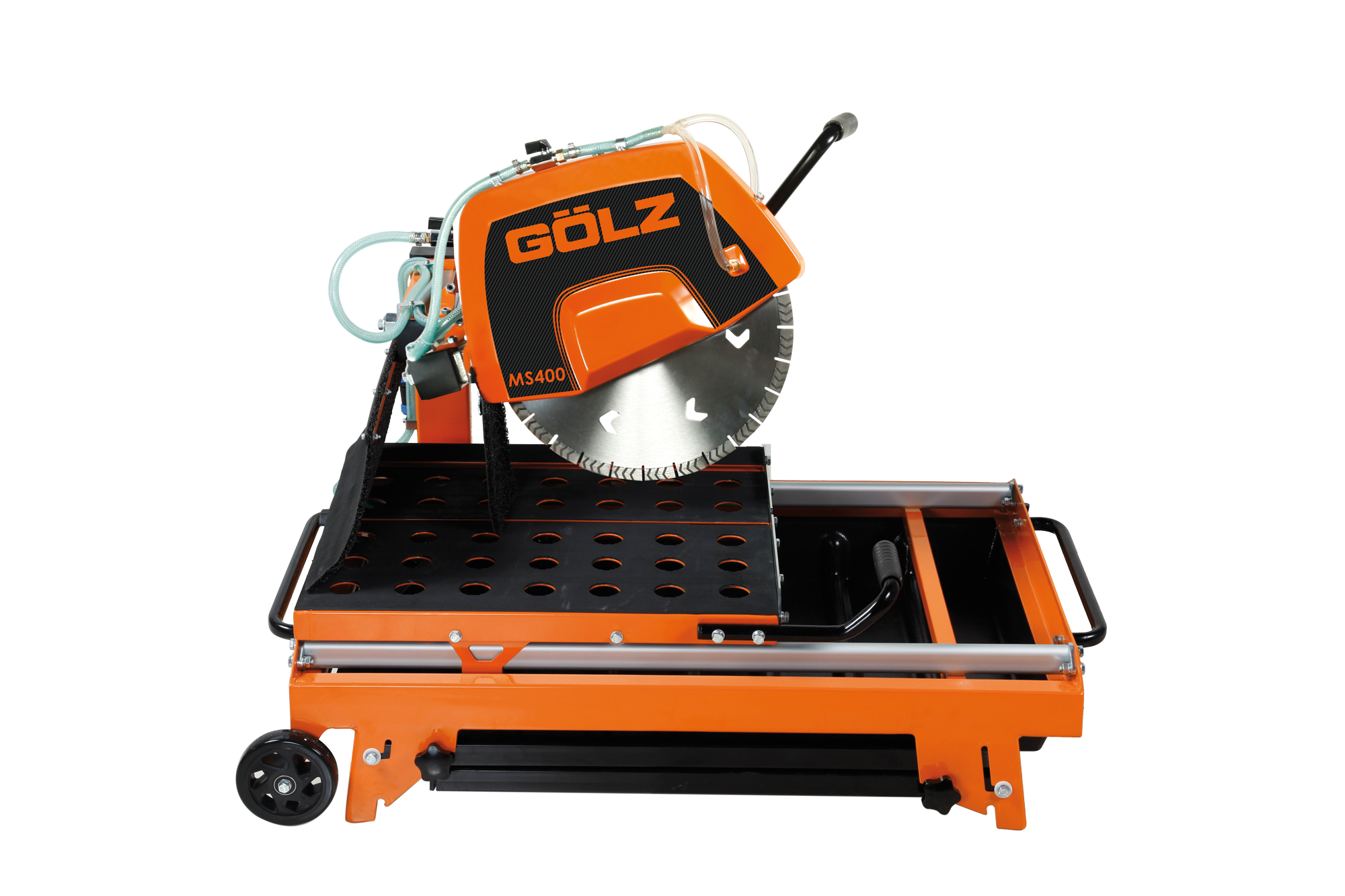

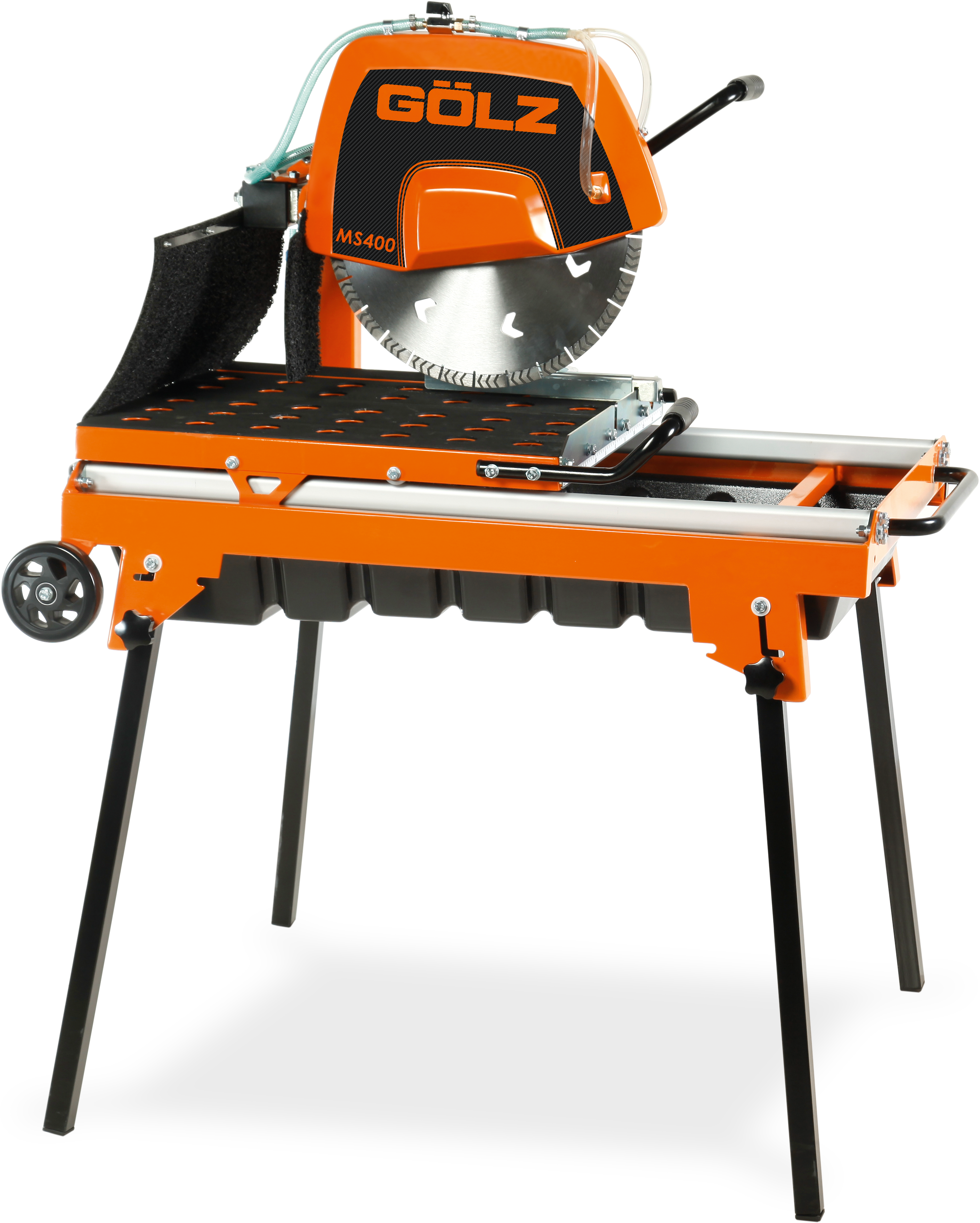

MS400
Compact and universal masonry saw with 45° tilting head
-
Blade-Ø400 mm
-
Max. Cutting Depth137 mm
-
Max. Cutting Length800 mm
-
Power2,2 kW, 230 V
ltem number: 0289 400 1000
-
FEATURES

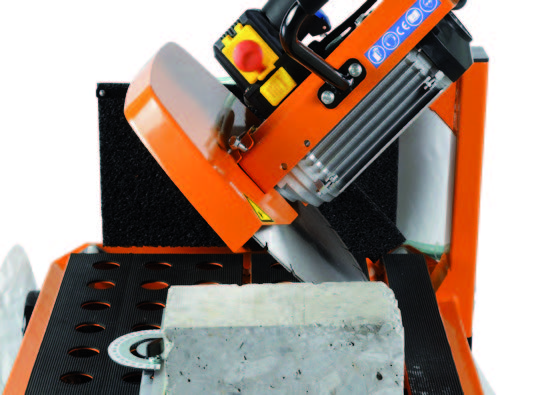

![Cutting head adjustable up to 45°]()
Cutting head adjustable up to 45°![Quick coupling of water pump]()

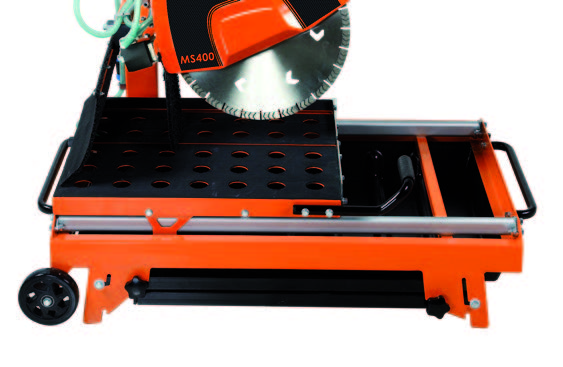

Quick coupling of water pump![Foldable legs]()
Foldable legs -
TECH DATA TABLE
• Huge cutting table: 600 x 530 mm

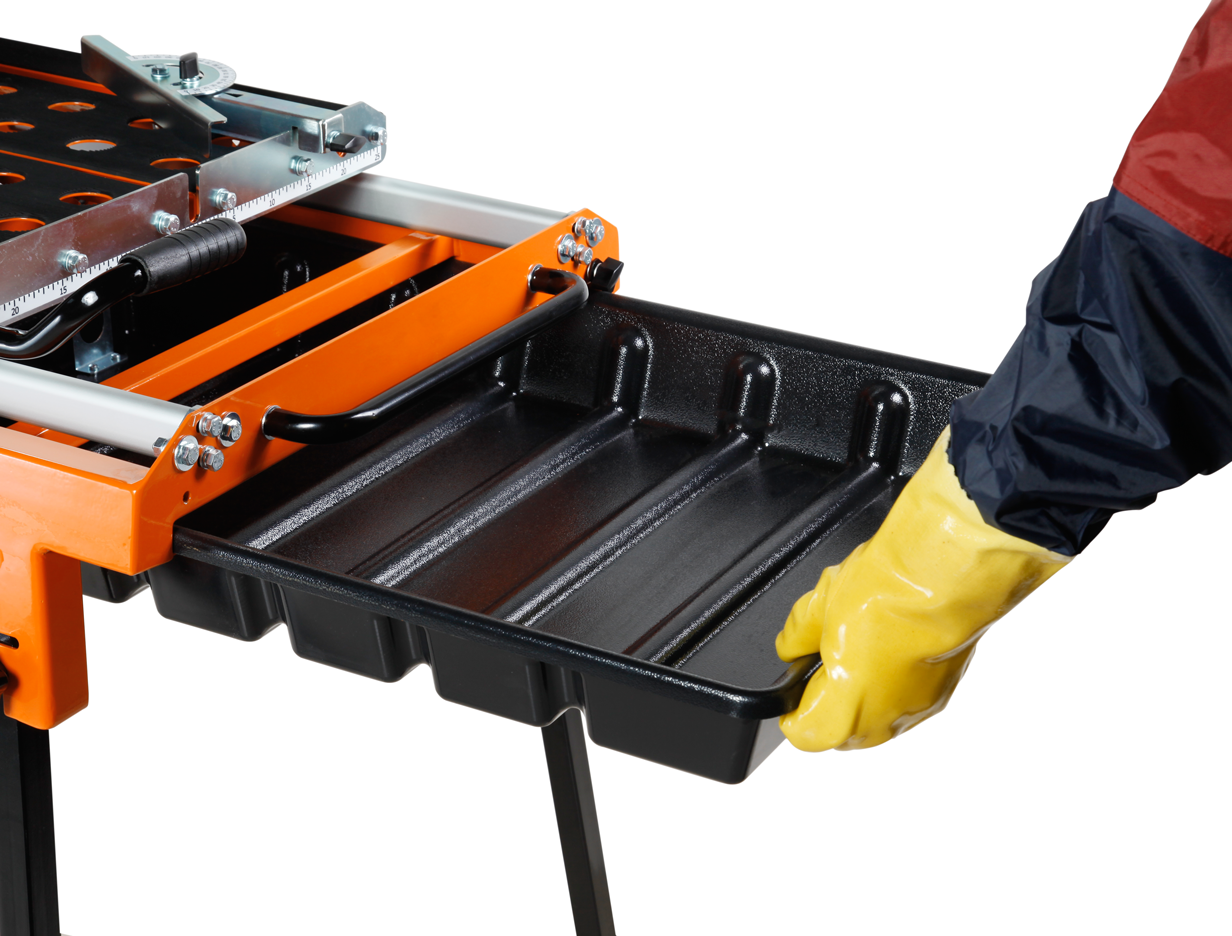

• Plastic water tub, easy for cleaning, no rusting, long life time
• Foldable legs

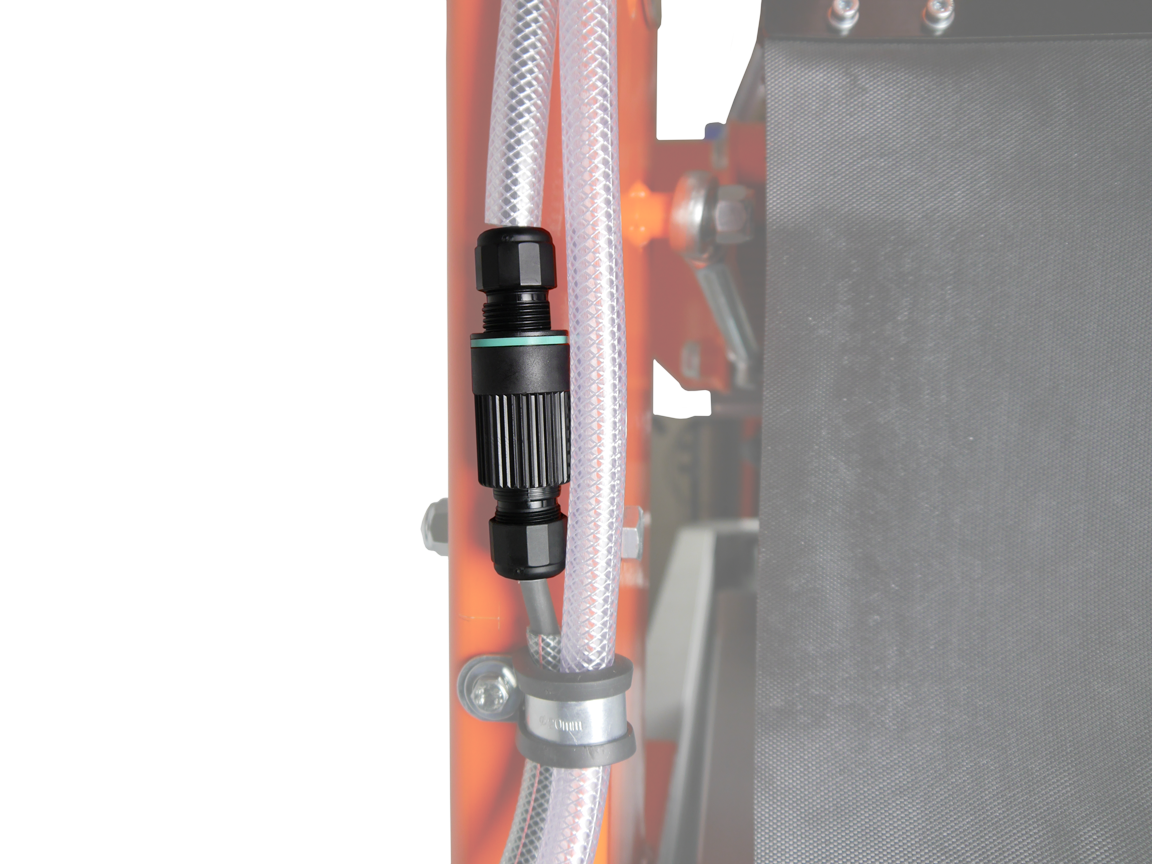

• Electric water pump with quick coupling, easy for changing the pump
• Special water nozzle for optimized water cooling

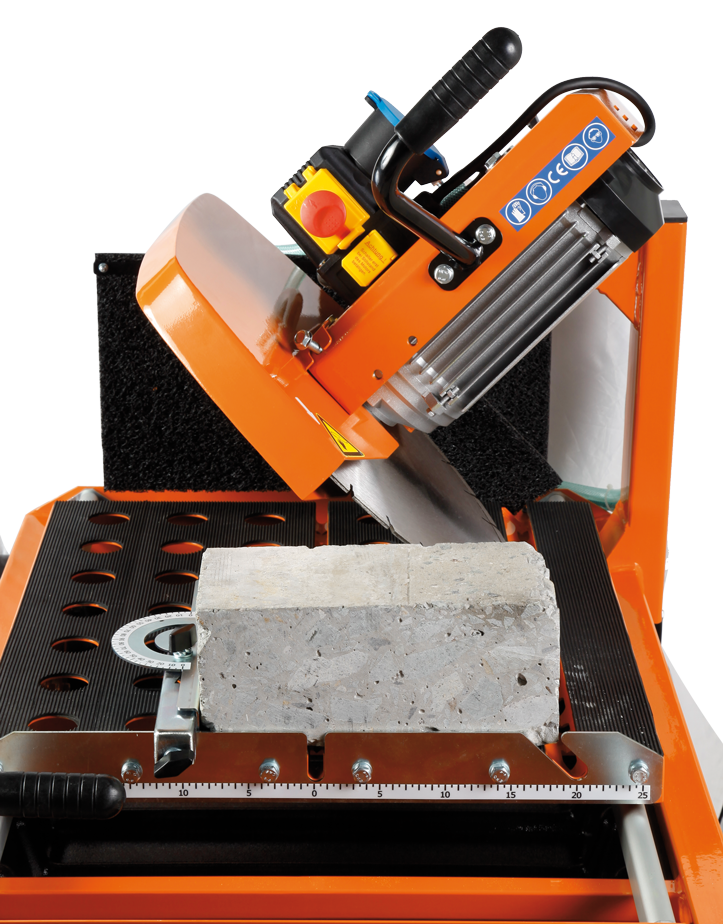

• Angle guide with degree scale
• Transportation wheel, easy for moving
Specifications MS400 230V MS400 115V Max. blade size 400 mm (16") 400 mm (16") Max. cutting depth 137 mm (5,4") 137 mm (5,4") Cutting length 700 mm (27,5") 700 mm (27,5") 45° miter-cut yes yes Motor Electric, 2,2 kW, 230V, 50Hz, IP54, 20A Electric, 2,2 kW, 115V, 50Hz, IP54, 20A Shaft speed 2.800 min-1 2.800 min-1 Water pump S2, 230 V, 50 Hz, 55 Watt S2, 115 V, 50 Hz, 55 Watt Blade flange size Ø 90 mm 90 mm Cutting table (LxW) 600 x 530 mm 600 x 530 mm Dimensions (LxWxH) 1.100 x 720 x 1.290 mm 1.100 x 720 x 1.290 mm Weight 66 kg (145,5 lbs) 66 kg (145,5 lbs) Order number 0289 400 1000 0289 400 1020 -
