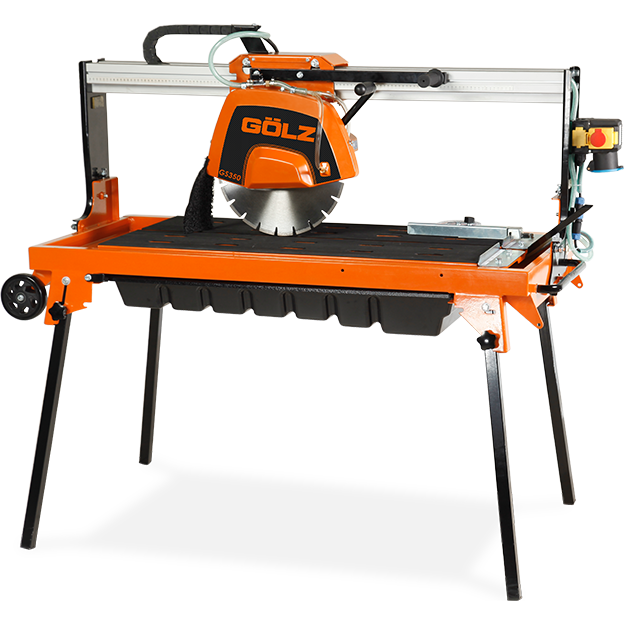

GS350
Robust bridge saw for the stone industry. Precise cutting of granite, marble, terrazzo and tiles.
-
Blade-Ø350 mm
-
Max. Cutting Depth110 mm
-
Max. Cutting Length1.200 mm
-
Power2,2 kW, 230 V
ltem number: 0289 350 3000
-
FEATURES
![Removable water tub]()

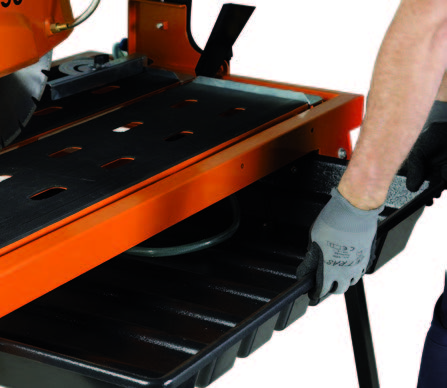

Removable water tub![Protecting cable duct]()

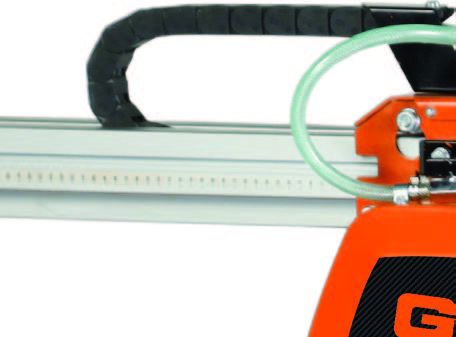

Protecting cable duct![45° miter-cut built-in]()

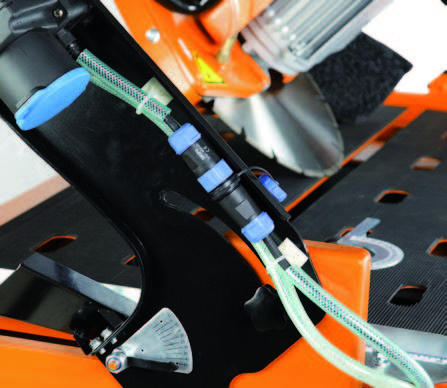

45° miter-cut built-in -
TECH DATA TABLE
Cutting length 1.200 mm (48") Blade-Ø 350 mm (14")
• Cutting head adjustable up to 45°
• Diamond blade Ø 350 mm
• Max. cutting depth 110 mm
• Plastic water tub, easy for cleaning, no rusting, long life time
• Electric water pump with quick coupling, easy for changing the pump
• Foldable legs
• Transport wheel, easy for moving and loading
• Adjustable cutting length
• Removable cutting table, easy for cleaning
• The front shield prevents operator against water spray
• Embedded cable protection chain, protects cables against damage
• Special water nozzle for optimized water cooling
Specifications GS350 230V GS350 115V Motor Electric, 230 V, 50Hz, IP54
Electric, 115V, 50Hz, IP54 Power 2,2 kW 2,2 kW Max. cutting depth 110 mm (4,5") 110 mm (4,5") Max. blade size 350 mm (17") 350 mm (17") Arbor hole 25,4 mm (1") 25,4 mm (1") Cutting length 1.000 mm (1.200 mm) / 40" (48") 1.000 mm (1.200 mm) / 40" (48") Shaft speed 2.800 min-1 2.800 min-1 45° miter-cut Built-In Built-In Water pump S2, 230V, 50Hz, 55W S2, 230V, 50Hz, 55W Blade flange size Ø 90 mm 90 mm Transport wheels yes yes Cutting table (LxW) 1.200x530 mm 1.200x530 mm Dimensions (LxWxH) 1.710x700x1.360 mm 1.710x700x1.360 mm Weight 95 kg (210 lbs) 95 kg (210 lbs) Order number 0289 350 3000 0289 350 3020 -
