FS125E

Lightweight and powerful electric floor saw, ergonomic designed for indoor applications.

Blade-Ø

350 mm
Max. Cutting Depth

120 mm
Power

3 kW, 400 V
Weight

85 kg

ltem number: 0282 125 6300

FEATURES

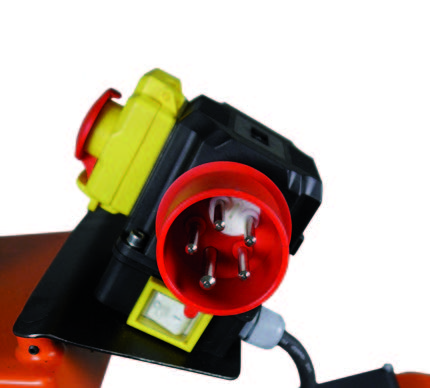

Switch/Plug combination

Cutting depth adjustment by handwheel

Cutting depth indicator

TECH DATA TABLE

3 kW-400V 3-phase electric motor

Blade-Ø 350 mm (14")

Cutting depth 120 mm (4,7")

• Adjustable anti vibration handles for operators comfort

• Cutting depth adjustment by handwheel

• Cutting depth indicator

• Front cutting guide

• Parking brake

• Big rear wheels for good chassis clearance

• External water connection

Specifications	FS125E
Max. Cutting depth	120 mm (4,7")
Blade diameter	350 mm (13,8")
Shaft size	25,4 mm (1")
Water-connection	external
Engine	3-phase electric
Engine power	400 V, 3 kW, 50-60 Hz
Shaft speed	2.880 min^-1
Feed motion	Push
Cutting depth adjustment	Handwheel
Power transmission	3 Poly-V Belt
Dimensions (L x W x H)	950 x 460 x 940 mm
Weight	85 kg (187 lbs)

Diamond Tools

Suitable diamond tools – our recommendations
CT30

Blade-Ø

350 - 700 mm

Bore-Ø

25,4 mm

Segment Height

10 mm

CT40

Blade-Ø

350 - 600 mm

Bore-Ø

25,4 mm

Segment Height

10 mm

Allmix

Blade-Ø

300 - 500 mm

Bore-Ø

25,4 mm

Segment Height

10 mm
DOWNLOAD MANUAL

FS125E

Size: 4.95MB
