FS190
Self propelled concrete and asphalt saw - electrically driven - the powerful and compact solution for medium-large sawing jobs in asphalt and concrete roadworks
-
Blade-Ø500 mm
-
Max. Cutting Depth190 mm
-
Power13 HP / 9,5 kW
-
Weight137 kg
ltem number: 0282 190 1000
-
FEATURES

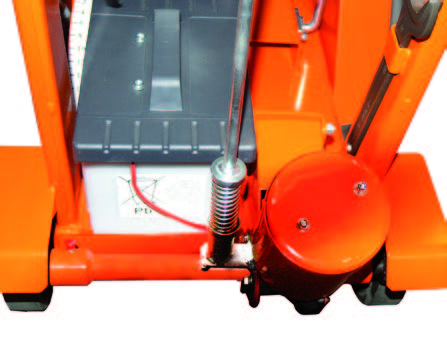

![Shiftable and detachable electric drive]()

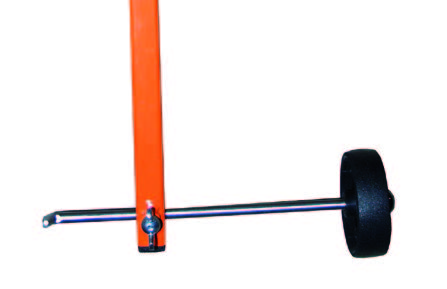

Shiftable and detachable electric drive![Front cutting guide]()

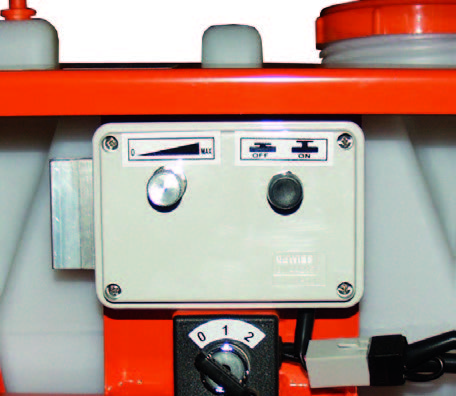

Front cutting guide![Electric start - control panel for adjustable speed]()
Electric start - control panel for adjustable speed -
TECH DATA TABLE
13 HP Honda gas engine
Blade-Ø 500 mm (20")
Cutting depth 190 mm (7,5")
• Electric Start, Battery, Alternator
• Cutting depth adjustment by handwheel
• Cutting depth indicator
• Front cutting guide
• Electric Drive, speed adjustable, E-drive detachable
• Lifting eye
• 25 Liter water tank, easy to fill
• Big rear wheels for good chassis clearance
Specifications FS190 Max. Cutting depth 190 mm (7,5") Blade diameter 500 mm (19,7") Shaft size 25,4 mm (1") Water tank 25 Liter (6,6 gal) Engine Honda GX390 Engine power (net power) 13 HP / 9,5 kW (11,8 HP / 8,7 kW)
Shaft speed 2.100 min-1 Feed motion Electric Cutting depth adjustment Handwheel Dimensions (L x W x H) 1.200 x 630 x 1.010 mm Weight 137 kg (302 lbs) -
Diamond ToolsSuitable diamond tools – our recommendations
-
DOWNLOAD MANUAL
