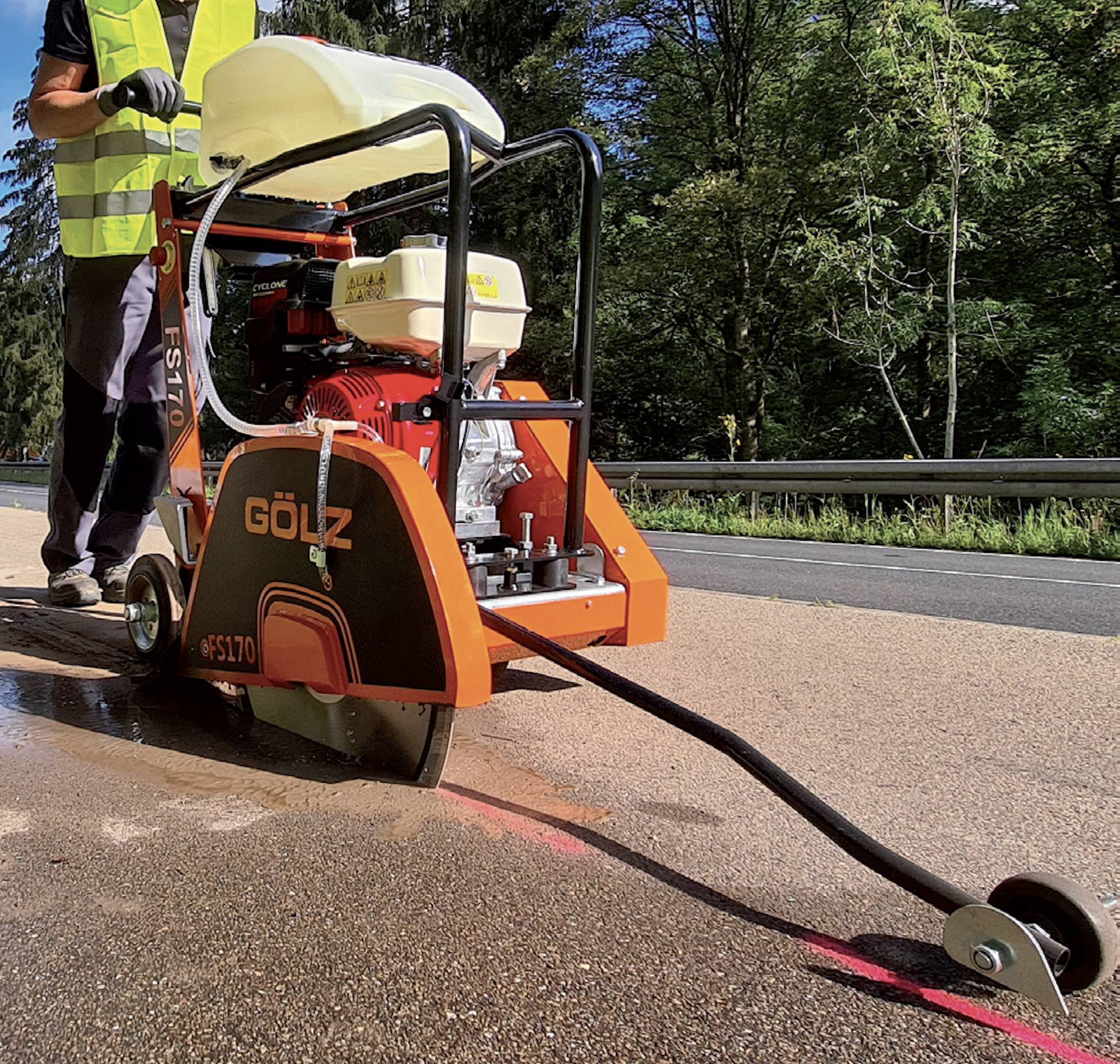

FS170
Maximum user-friendliness thanks to lowering via foot pedal
Longest service life thanks to galvanized chassis
Compact – robust – suitable for construction sites
Longest service life thanks to galvanized chassis
Compact – robust – suitable for construction sites
-
Blade-Ø500 mm
-
Max. Cutting Depth190 mm
-
Power13 HP / 9,5 kW | 14 HP / 10,5 kW
-
Weight120 kg
ltem number: Honda 0282 170 1000 | KOHLER 0282 170 1400
-
FEATURES
![Attachable water tank 25 l, easy to fill]()
Attachable water tank 25 l, easy to fill![Height adjustable handles]()

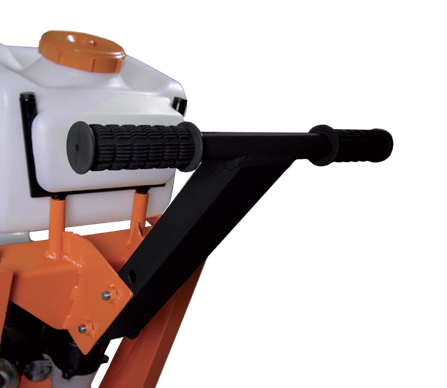

Height adjustable handles![Big rear wheels for easy moving on the construction site]()

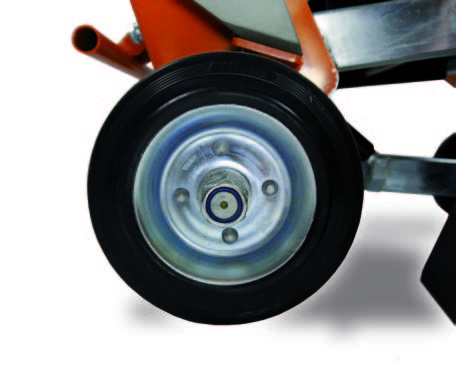

Big rear wheels for easy moving on the construction site![Cutting depth adjustment by foot pedal]()

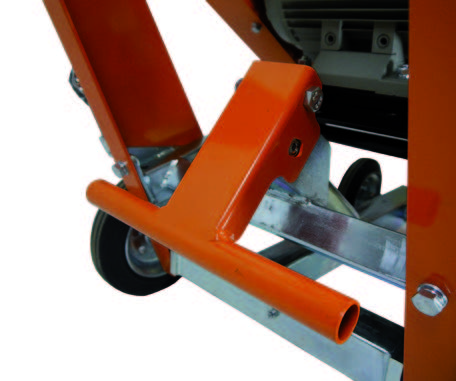

Cutting depth adjustment by foot pedal -
TECH DATA TABLE
Gasoline or Electric motor
Blade-Ø 500 mm (20")
Cutting depth 190 mm (7,5")• Anti-Vibration system, height adjustable handles
• Galvanised Chassis for long service life
• Cutting depth adjustment by foot pedal for operators safety
• Cutting depth indicator
• Front cutting guide
• Parking brake
• Safety frame with integrated lifting frame
• 25 Liter water tank, easy to fill
• Big wheels for good chassis clearance
• Durable V-belt drive
• Maintenance free design (hot dipped galvanized chassis)Specifications FS170 Max. Cutting depth 190 mm (7,5") Blade diameter 500 mm (19,7") Shaft size 25,4 mm (1") Water tank 25 Liter (6,6 gal) Engine Honda GX390 | KOHLER Motor CH440 Engine power (net power) 13 HP / 9,5 kW (11,8 HP / 8,7 kW) |
14 HP / 10,5 kW (12,7 HP / 9,4 kW)
Shaft speed 2.300 min-1 Feed motion Push Cutting depth adjustment Footpedal & Pneumatic Spring Power transmission V-Belt Kit Hand Arm Vibrations 4,5 m/s2 Dimensions (L x W x H) 960 x 610 x 1.170 mm Weight 120 kg (264 lbs) -

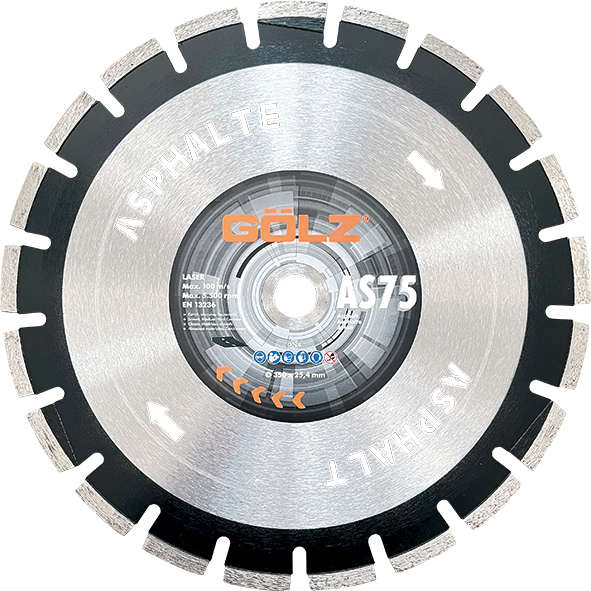

Diamond ToolsSuitable diamond tools – our recommendations
-
ACCESSORIESComplete your equipment
-
DOWNLOAD MANUAL
