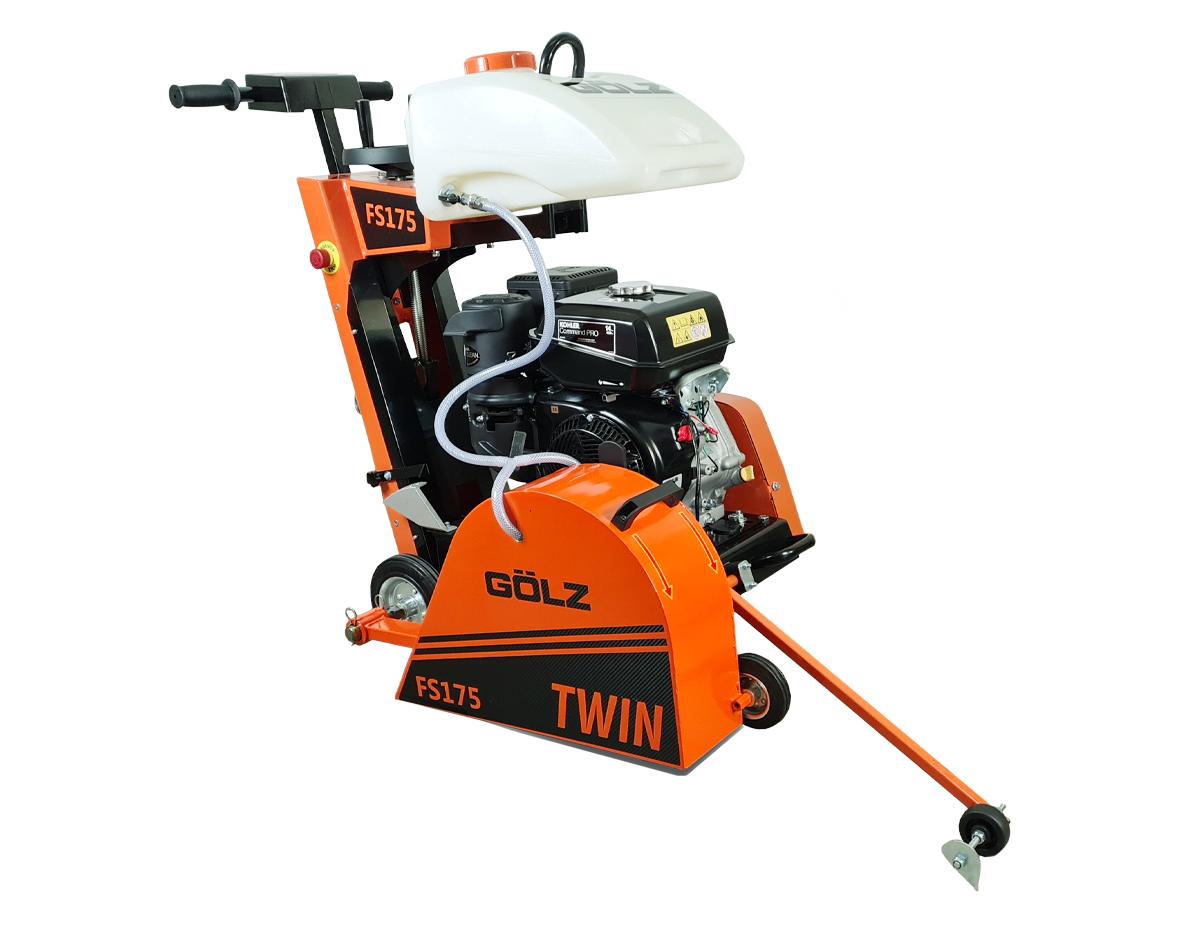

FS175
Compact and solid push saw for small services and repair jobs in roadworks. The height adjustable anti-vibration handles have a clear focus on operators convenience. Compact - robust - comfortable.
-
Blade-Ø500 mm
-
Max. Cutting Depth190 mm
-
Power13 HP / 9,5 kW | 14 PS / 10,5 kW
-
Weight128 kg
ltem number: Honda 0282 175 6060 | KOHLER 0282 175 6020
-
FEATURES
![Cutting depth indicator]()

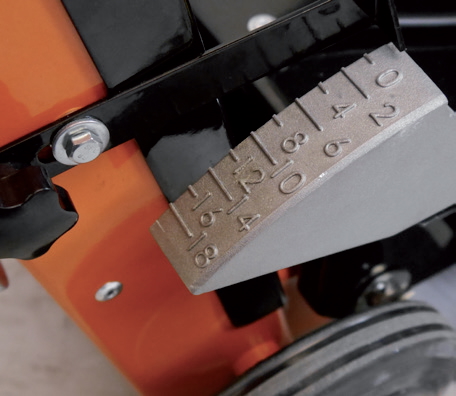

Cutting depth indicator![Removeable 25l water tank]()
Removeable 25l water tank![Lifting frame]()
Lifting frame -
TECH DATA TABLE
Blade-Ø 500mm (19,6")
Cutting depth 190 mm (7,4")
• Adjustable anti vibration handles for operators comfort
• Cutting depth adjustment by handwheel
• Cutting depth indicator
• Front cutting guide
• Parking brake
• Lifting frame
• 25 Liter water tank, easy to fill
• Big rear wheels for good chassis clearanceSpecifications FS175 Max. Cutting depth 190 mm (7,4") Blade diameter 500 mm (19,6") Shaft size 25,4 mm (1") Water tank 25 Liter (6,6 gal) Engine Honda GX200 | KOHLER Motor CH440 Engine power (net power) 13 HP / 9,5 kW (11,8 HP / 8,7 kW) | 14 HP / 10,5 kW (12,7 HP / 9,4 kW) Shaft speed 2.300 min-1 Feed motion Push Cutting depth adjustment Handwheel Power transmission V-Belt Kit Hand Arm Vibrations 4,5 m/s2 | 2,2 m/s2 Dimensions (L x W x H) 1.220 x 520 x 1.100 mm Weight 128 kg (282 lbs) | 130 kg (287 lbs) -
Diamond ToolsSuitable diamond tools – our recommendations
-
ACCESSORIESComplete your equipment
-
DOWNLOAD MANUAL
